Solid Wood Double-side Planer Surface Planer With Stepless Speed Regulation
Processing diagram
Machine Introduction
1. Suitable for double side and fixed-thickness planing tor the boards of thickness under 200mm.
2. Adopting frequency control to ensure the efficiency for B series.
3. The structure of the bottom cutter shaft can be pulled out quickly which result a more convenient and more
secure way to replace or adjust the cutter.
4. The workbench is made of a special weat-resistance material with polishing treatment which could result a high
precision and abrasion performance.
5. Schneider electrical elements.
6. The precision can up to 0.01mm of the magnetic grating digital readout .input the data to set the
working thickness automatically.
7. The feeding unit can be adjusted up-wards and downwards,the elevating range reaches 6mm, and thus the
processing precision can be enhanced with powerful feeding.
8. Provided with driven feed roller structure.ensuring stronger and smoother feeding.equipped with overloading
protection mechanism.
9. Equipped with pressure plate guarantees short workpiece smooth machining, increasing production output.
10. Imported automatic lubrication pump for forced lubrication of feeding parts, with oil-free protection function.
11. The bearing brand such as TR. NSK. SNR.
12. Short boards,feeding roller shelf device(optional).
13. Automatic thickness measurement and lower limit switch.
14. The holders are all resin sand casting to avoid any deformation.
LIGNA GERMAN, World Top Level Exhibition of Woodworking Machinery.
QingDao Samac International Trading Co., Ltd. Specializes in the export of woodworking, glass processing, metal processing and Stone Processing machinery. Our woodworking machinery series is mainly used to process real wood, wooden plates, plywood and related types of wood.
Since the foundation of our company, we have always introduced first-class Chinese machinery to the entire world. We cooperate with many local famous factories on R&D to keep in pace with this modern world. Our company aims to help our customers select the best quality and most suitable products for their needs. Simultaneously, we also undertake OEM/ODM projects which can satisfy customers' special requirements.
Quality: We are scrupulous about every detail, professional QC and strict checking porcedure ensure our work and guarantee eac machine which is in it's best presentation. All our goods pass through our rigid quality control before shipment.
With high-quality products, powerful strength, a professional team and excellent after-sales service, we have gained a good reputation among our customers. It is our sincere desire to develop more customers' business through trustworthy cooperation.
Factory
Exhibition
Packing and transportation
FAQ:
1. Can you offer special discounts to the wholesaler or we make big quantity?
Yes, we will give you best support according to your quantity, and will arrange some promotion products every month.
2. What is your delivery time?
Normally, we can finish one order at about 25-30days, but the exact time depends on different styles and different quantities you order.
3. Can you arrange the shipment by door to door?
We can offer door to door service both by sea and by air, which can save your time and money. Also, we have cooperated forwarder in some countries and can arrange the customs clearance for you.
4. Do I have to assemble all items by myself or by my customer himself?
Our packing will be two different ways according to different products. Some are used the KD packing (for some little spare parts), and others need to be assembled, But it is so easy to assemble with the user manual or video teaching.
5. What's your warranty?
We normally will provide one years warranties. If the product is caused by factory mistakes, We will give you free replacement for the spare parts. If it was damaged during the shipping or other reasons, we will provide the best solutions for you.
6. What payment do you accept?
Normally we can provide TT, LC, PAYPAL, ESCROW, WESTERN UNION ect. Any other ideas, please contact us for better support.
Double-side Planer Parameters
| Models | RMB470B | RMB630B | RMB470A | RMB630A |
| Working thickness | 9-200mm | 9-200mm | 9-200mm | 9-200mm |
| Working width | 10-470mm | 10-630mm | 10-470mm | 10-630mm |
| Min. Working length | 250mm(180mm) | 250mm(180mm) | 250mm(180mm) | 250mm(180mm) |
| Max. Cutting depth | Upper:5mm Bottom:5mm | Upper:5mm Bottom:5mm | Upper:5mm Bottom:5mm | Upper:5mm Bottom:5mm |
| Cutting spindle dia | Ф100mm | Ф100mm | Ф100mm | Ф100mm |
| Cutting spindle speed | 5000r/min | 5000r/min | 5000r/min | 5000r/min |
| Feeding speed | 7-13m/min | 7-13m/min | 3-20m/min | 3-20m/min |
| Upper cutting spindle motor power | 7.5kw | 15kw | 7.5kw | 15kw |
| Bottom cutting spindle motor power | 5.5kw | 7.5kw | 5.5kw | 7.5kw |
| Feeding motor power | 2.2kw | 2.2kw | 2.2kw(VFD) | 2.2kw(VFD) |
| Lifting motor power | 0.37kw | 0.37kw | 0.37kw | 0.37kw |
| Total power | 15.57kw | 25.07kw | 15.57kw | 25.07kw |
| Dust exit dia | Ф150mm | Ф150mm | Ф150mm | Ф150mm |
| Overall size(mm) | 2550×1050×1750 | 2600×1200×1750 | 2550×1050×1750 | 2600×1200×1750 |
| Net weight | 2300kg | 2600kg | 2300kg | 2600kg |
Samach'S Service and dominants:
1: Professional team of techniques study and research, guarantee the Machine latest
and improving efficiency.
2.Knowing China and world markets well, offer professional soluttions.
3.Fast market reaction, guarantee our partners always in front edge.
4.Supeiror Guarantees,quality of our machine and sell-after services.
5.OEM/ODM are available.
6.Principle: One cooperation, forever partners.
Contact us and Enjoy our Happy Coopperation Together. Thank you for your time ^_^ !

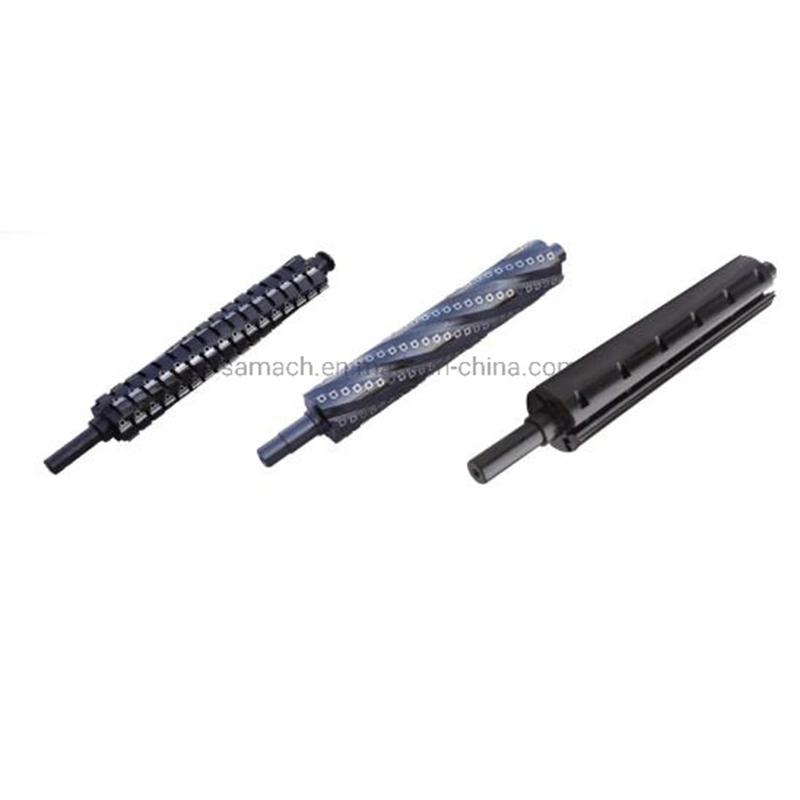

Planer type
