High Speed ​​60m/Min Solid Wood Machinery 4 Sides Forming Machine 4 Sides Planer

4-side Moulder/Four-Side Moulder/Woodworking planer/Moulder Machinery For Wooden Furniture/Solid woodQMB623ASpecificationsUnitQMB623AWorking widthmm20-230Working thicknessmm8-160Min.working length(intermittent/continuous)mm840/280Dia of spindlemmΦ40Feeding speedm/min6-36Rotation speed of spindler/min6800The First spindl

Featured Products

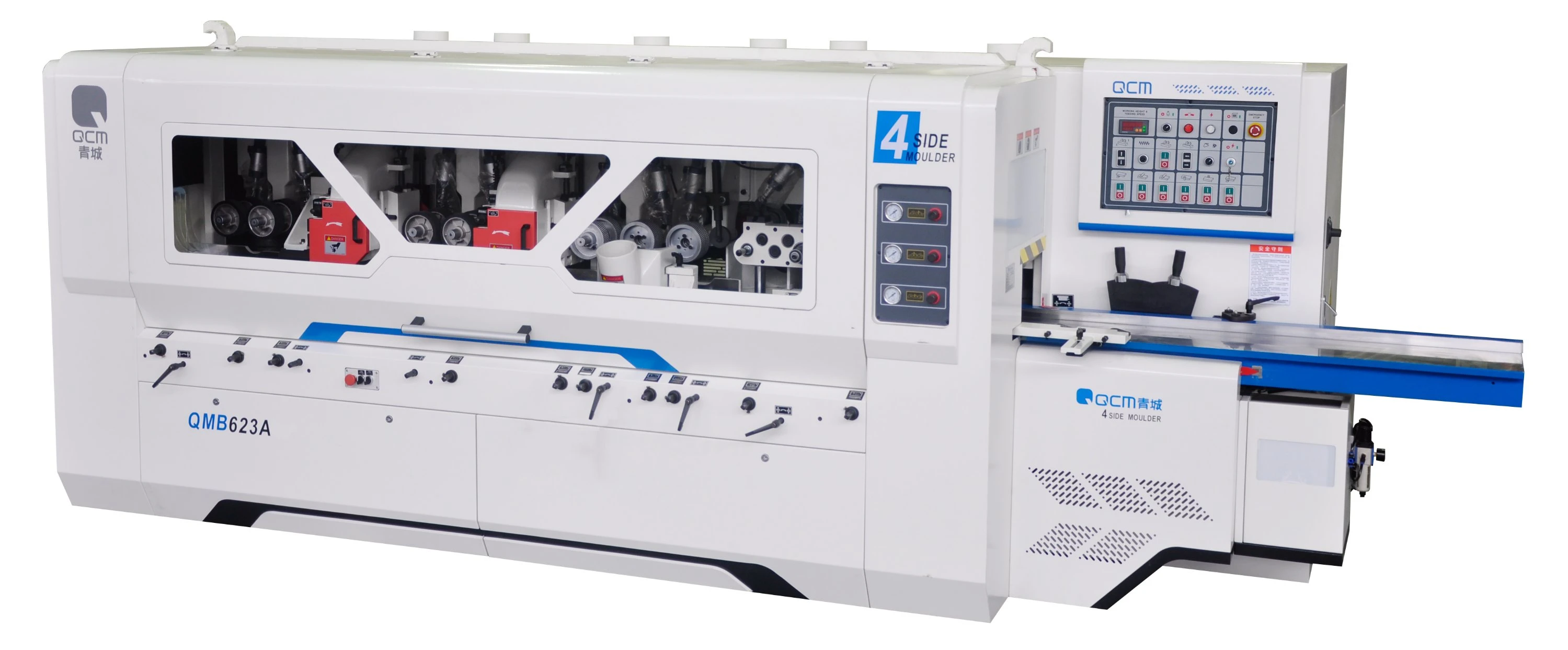

4-side Moulder/Four-Side Moulder/Woodworking planer/Moulder Machinery For Wooden Furniture/Solid wood
QMB623A
High-Speed 60m/Min Solid Wood Machinery 4 Side Moulder Four Side Planer
SpecificationsUnitQMB623A
Working widthmm20-230
Working thicknessmm8-160
Min.working length(intermittent/continuous)mm840/280
Dia of spindlemmΦ40
Feeding speedm/min6-36
Rotation speed of spindler/min6800
The First spindle speedr/min/
Other spindle speedr/min/
Cutter dia of first bottom cutterr/minΦ125
Left/Right vertical cuttermmΦ108-Φ200
The first upper cuttermmΦ108-Φ180
The Second upper cuttermmΦ108-Φ180
Back bottom cuttermmΦ108-Φ230
The Second right vertical cuttermm/
Total powerkW/HP47.25/63
The First bottom cutterkW/HP5.5/7.5
Left vertical cutterkW/HP7.5/10
Right vertical cutterkW/HP5.5/7.5
The first upper cutterkW/HP7.5/10
The second upper cutterkW/HP7.5/10
The second bottom cutterkW/HP7.5/10
The second right vertical cutterkW/HP/
Feeding motorkW/HP5.5/7.5
Beam lifting motorkW/HP0.75/1
Air supply pressureMPa0.6
Vacuum port diametermm6*Φ150
Overall dimensionsmm4960*1900*1700
Weightkg5600

High-Speed 60m/Min Solid Wood Machinery 4 Side Moulder Four Side Planer


Qingcheng Machinery Co.,LTD established in 1970 which are speclializing in producing all kinds of woodworking machines, like Four Side Moulder, Double Side Planer, Automatic Muti-blade Rip Saw, Automatic Single-side Rip Saw and Double-end Tenoning Machine, Wood Planer etc.

It's been 70years since we have devoted our-self to the development and manufacturing of woodworking machinery.

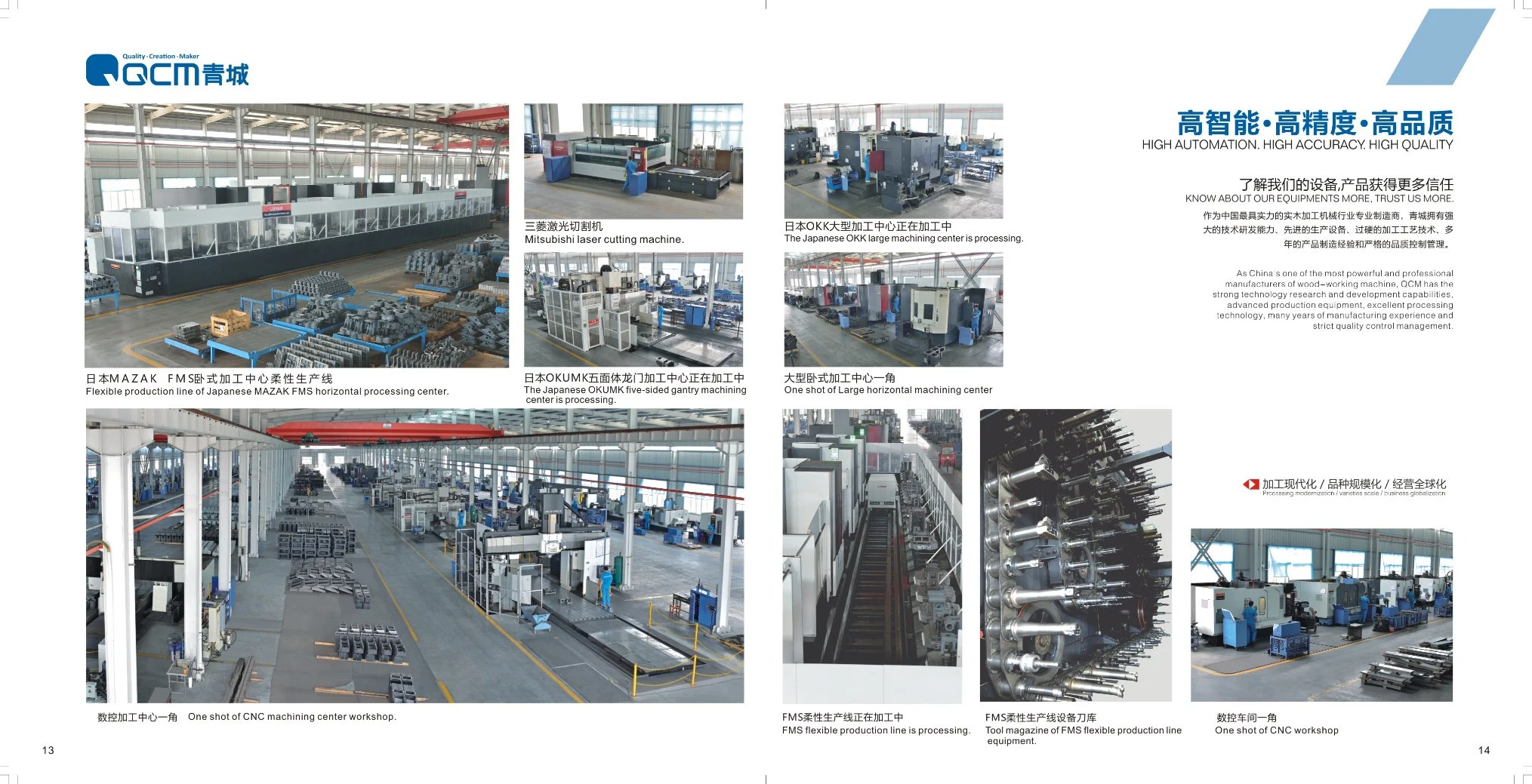

As a top manufacturer in wood machinery, we insist on investment on research and develop and equipment. We have purchased vertical machining centers, muti-function CNC lathes produced by Japan Mazak, horizontal machining centers of Japan MAKINO, Japanese gantry machining centers of OKUMA, and laser cutting machines from Mitsubishi.


Those advanced equipment insure you precision, performance and durability, with mass production in big quantity. So that we can insure our customers fast delivery time, high quality and perfect performance.

High-Speed 60m/Min Solid Wood Machinery 4 Side Moulder Four Side Planer
High-Speed 60m/Min Solid Wood Machinery 4 Side Moulder Four Side Planer



FAQ

Below FAQ for your reference, if you have any further questions, we are always here for you.

1, Manufacturer or Trading company?
Yes, we are professional machine producer since 1970.During the last 70 years, we devoted our-self to the development and manufacturing of woodworking machinery with passion and innovation. You will be always welcomed to visit our factory.


2, What's your payment term?
30% deposit and 70% balance should be paid before delivery.


3, How about your after-sale service?
Our engineers are available to service overseas to provide professional technical support.


4, Warranty of your products?
Its warranty is 12 months.


5, What's your leading time?
Within 2 days for regular stocked machine after receiving deposit.
2 months for OEM machines.


7, What's your delivery term?
---FOB shanghai/Ningbo
